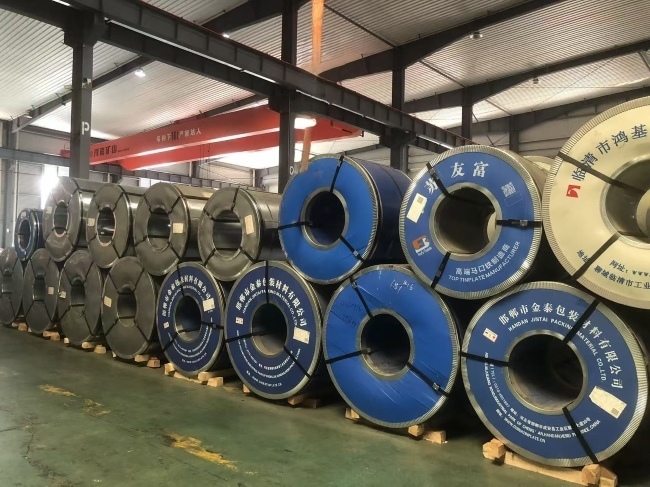

High-Performance DR9 Electrolytic Tin Plate Coils for Food Can Manufacturing - Multiple Widths Available
Product Description:
DR9 Electrolytic Tin Plate coils represent premium-grade tin coated steel specifically engineered for demanding packaging applications. These coils feature a precise electrolytic tin coating applied to cold-rolled low-carbon steel, creating a material that combines exceptional strength with superior corrosion resistance. The DR9 temper designation indicates a high-strength material ideal for applications requiring robust performance while maintaining excellent formability. Available in standard widths of 600mm, 700mm, and 1000mm, these coils provide manufacturers with versatile options for producing food containers, chemical packaging, and industrial cans. The material's unique properties ensure reliable performance in various environments, making it suitable for both conventional and specialized packaging solutions.
Features & Advantages:
DR9 temper provides high strength-to-weight ratio for durable packaging solutions
Multiple width options (600mm-1020mm) accommodate diverse production requirements
Superior corrosion resistance protects contents and extends shelf life
Excellent formability enables complex can designs and manufacturing efficiency
Food-safe coating complies with international food contact regulations
Consistent thickness tolerance (±0.01mm) ensures manufacturing precision
Customizable surface finishes meet specific aesthetic requirements
Applications:
Food and beverage cans (fruits, vegetables, seafood, drinks)
Aerosol containers and chemical packaging
Pharmaceutical and industrial containers
Caps, closures, and specialty packaging components
Technical Parameters:
| Property | Specifications |
|---|---|
| Material Grade | DR9, MR, SPCC Prime Quality |
| Thickness Range | 0.15-0.48mm (±0.01mm tolerance) |
| Available Widths | 600mm, 700mm, 1000mm (Custom to 1020mm) |
| Tin Coating | 1.1/1.1 to 5.6/5.6 g/m² |
| Surface Finish | Bright, Stone, Matte, Silver |
| Coil Configuration | ID 508/610mm, Custom Lengths Available |
| Standards | JIS G3303, DIN, ASTM, GB |
PORT: ShangHai
Electrolytic Tin Plate Workshop Show
PARTNER
FAQ:
What does the DR9 designation signify?
DR9 indicates a high-strength temper grade specifically designed for applications requiring superior mechanical properties while maintaining formability.
Can I request custom widths outside the standard range?
Yes, we can provide customized widths up to 1020mm to meet specific production requirements.
What makes Electrolytic Tin Plate suitable for food packaging?
The tin coating provides non-toxic, corrosion-resistant protection that meets international food safety standards.
Do you provide technical support for material selection?
Our engineering team offers comprehensive support to help select the optimal material for your application.
What is the lead time for production orders?
Standard orders typically ship within 15-25 days after order confirmation and payment.
